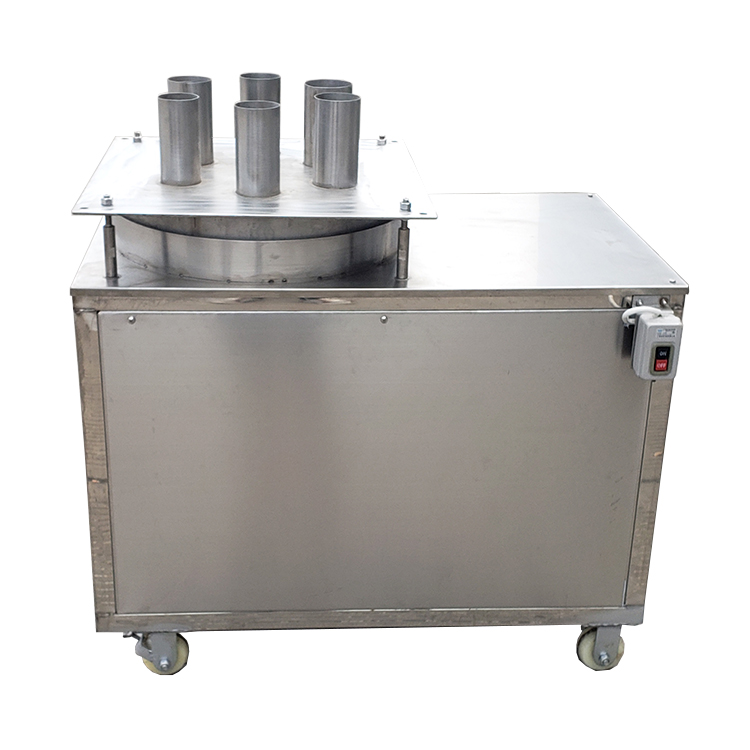

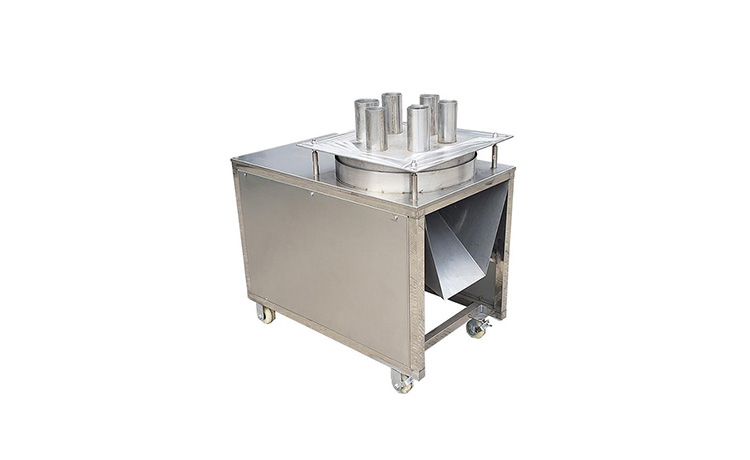

LG500PlatformDirectionaSlicer

This machine is designed and manufactured in accordance with the increasing requirements of market product quality.

    According to the size of the material, choose the appropriate inlet, manually forward, one material after another, and manually press into the inlet. Bananas, wafers, ovals do not need to be pressed by hand.

    It has the characteristics of accurate orientation, adjustable sheet thickness, consistent thickness, and good finish.

Suitable for carrots, incense sticks, onion rings, apple rings, lotus root, burdock, yam, bamboo shoots, sweet oranges and other potato, ball, root fruit and vegetable materials.

Feed hole:

    1. Normally supply feed hole specifications Φ76, Φ63, Φ51, Φ38, 2 holes each or order according to user needs.

    2. The slice shape of the oblique installation of the inlet is an ellipse, and it is produced according to the users order specifications.

    3. It can also be made into an oval-shaped inlet according to the material.

Dimensions: 1000 × 620 × 1000mm. Weight: 70kg

Note: There should be no hard objects such as stones.

This series of products are guaranteed for one year and lifetime maintenance service.


  • 70 kg
    重量
  • 300-1000 Kg / h
    产量
  • 0.75Kw
    功率
  • 370 × 270 mm
    外形尺寸
LG500PlatformDirectionaSlicer
  • LG500PlatformDirectionaSlicer

    LG500PlatformDirectionaSlicer

  • LG500PlatformDirectionaSlicer

    LG500PlatformDirectionaSlicer

  • LG500PlatformDirectionaSlicer

    LG500PlatformDirectionaSlicer

  • LG500PlatformDirectionaSlicer

    LG500PlatformDirectionaSlicer

产品视频
Platform directional slicer--lemon
查看更多视频
产品参数
  • Weight: 70 kg

  • Ground height: 370 mm

  • Motor: Y90S-6

  • Cut shape specification: 1.6-30 mm

  • Power: Cutting 0.75Kw

  • Capacity: 300-1000 Kg / h

  • Exit size: 370 × 270 mm

  • Feeding trough: φ22-φ76 can be customized

  • Weight: 100Kg aluminum plate 3Kg arc knife

  • Dimensions: 1010 × 610 × 940 mm

  • Cut 2 bananas Φ38, 4-Φ38, spare Φ51, Φ63.

  • The slice thickness is 1-6mm. Adjust with a shim. Thickness = height of cutting edge.

产品详情

This machine is designed and manufactured in accordance with the increasing requirements of market product quality.

    According to the size of the material, choose the appropriate inlet, manually forward, one material after another, and manually press into the inlet. Bananas, wafers, ovals do not need to be pressed by hand.

    It has the characteristics of accurate orientation, adjustable sheet thickness, consistent thickness, and good finish.

Suitable for carrots, incense sticks, onion rings, apple rings, lotus root, burdock, yam, bamboo shoots, sweet oranges and other potato, ball, root fruit and vegetable materials.

Feed hole:

    1. Normally supply feed hole specifications Φ76, Φ63, Φ51, Φ38, 2 holes each or order according to user needs.

    2. The slice shape of the oblique installation of the inlet is an ellipse, and it is produced according to the users order specifications.

    3. It can also be made into an oval-shaped inlet according to the material.

Dimensions: 1000 × 620 × 1000mm. Weight: 70kg

Note: There should be no hard objects such as stones.

This series of products are guaranteed for one year and lifetime maintenance service.
